Timber bridges
General Guidance to Type versus Span - However this is an indication only
|
Material |
Flat Beam
|
Cut to Camber |
Glue-laminated
|
Timber Truss
|
Dowel-laminated
|
|
Ideal Span |
Up to 11m |
Up to 11m |
Up to 11m |
Typically Up to 30m |
Over 10m |
|
Softwood |
x |
x |
x |
|
|
|
Hardwood |
x |
x |
|
x |
x |
Timber bridges
Sustainable and Low Maintenance
Timber bridges are available in a whole range of styles to suit locations, budgets, spans & aesthetics.
Timber bridges are designed to BS 5400 and BS 5268 or Eurocode 5 with a design live load of 5kN/m2
Available in Hardwood or Softwood.timber.
All softwood is pre-treated for a 30 year service life

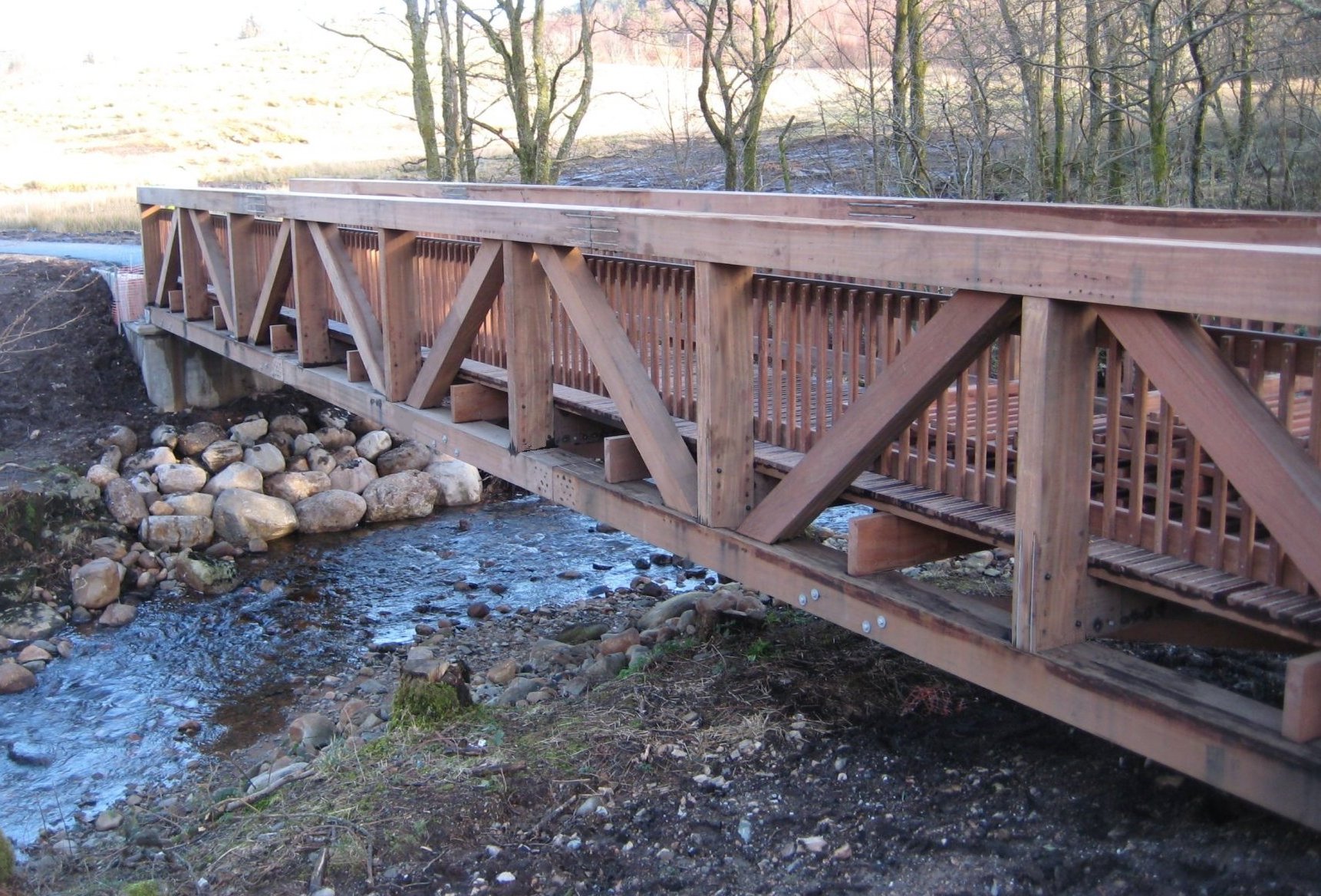

Timber bridges can have solid beams, glue-laminated beams, dowel-laminated beams or take the form of a truss.
CTS hold an FSC® Certificate for the supply of bridges made with FSC® certified materials.
